As‑built scan and plans for a duty‑free lounge in an international airport: clear geometry for fit‑out and operations
As‑built scan and plans for a duty‑free lounge in an international airport: clear geometry for fit‑out and operations.
- LocationMoscow area
- Accuracy±2–3 mm (typical)
- Scope4 work packages
- FormatsE57, RCP, DWG
About the project
SPLINE.PRO delivered surveying and 3D capture for this project (Терминал аэропорта, чистая (стерильная) зона). Typical scope: Laser scanning, Measured drawings, BIM model.
Client outputs included agreed formats (E57, RCP, DWG) and quality checks before handover.
What the client received
- Laser scanning
- Measured drawings
- BIM model
- Фототур (панорамный тур)
- E57
Work in progress

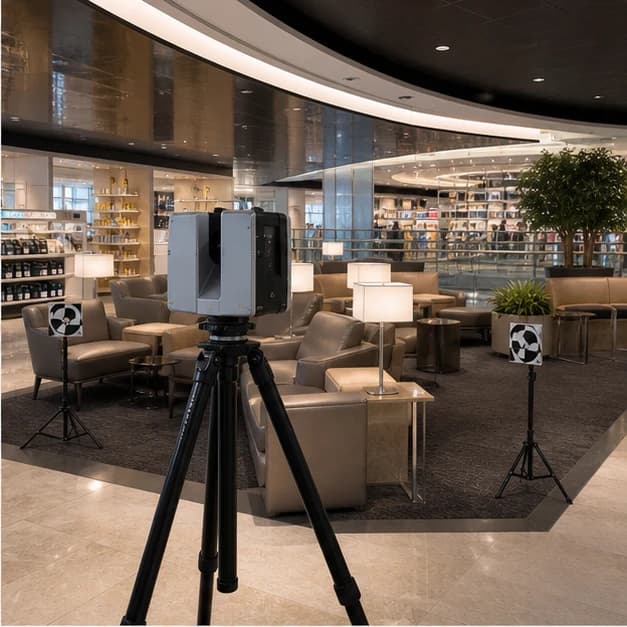

- Area 1Field photo 1.

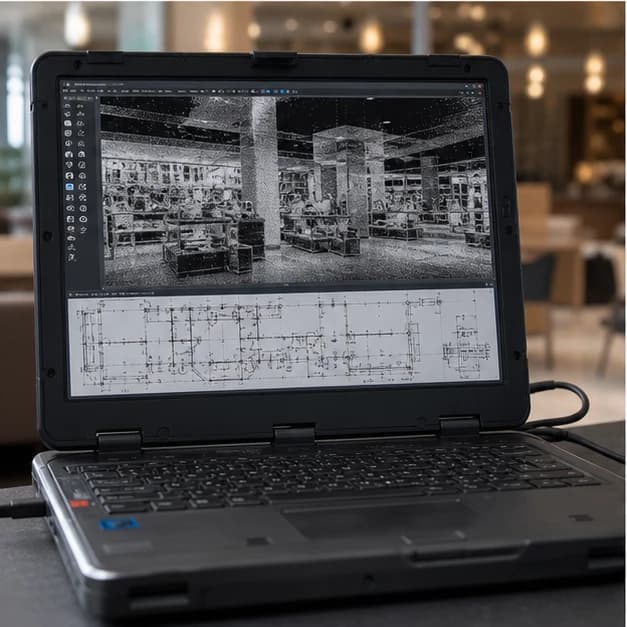

- Area 2Field photo 2.

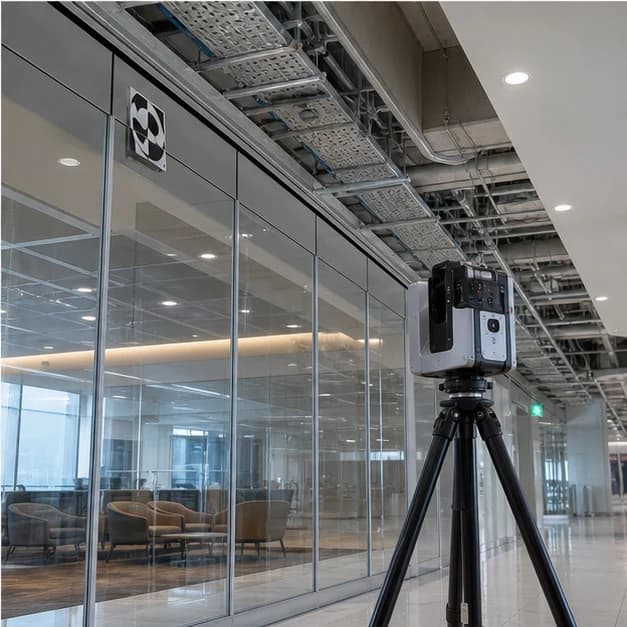

- Area 3Field photo 3.
Work stages
Preparation
Defining scope, access, and the agreed deliverable set.
Field work
Scanner capture with overlap and quality control.
Processing
Registration, cleaning, and export to project formats.
Documentation
Plans, sections, and handover to the client in DWG/PDF, etc.
Results
Point cloud and model
Dense point cloud, mesh, and BIM-friendly deliverables as agreed.
Drawings and plans
Floor plans and sections in the agreed scales and layer structure.
Data for your workflow
Handover support and advice on using data in your design tools.
A similar task? Let’s talk about your site
We’ll outline scope, schedule, and deliverables.
