Portfolio laser scanning and DWG as‑builts for bank offices, branches, and non‑core assets to support real‑estate inv…
Portfolio laser scanning and DWG as‑builts for bank offices, branches, and non‑core assets to support real‑estate inventory.
- LocationMoscow area
- Accuracy±2–3 mm (typical)
- Scope3 work packages
- FormatsE57, RCP, DWG/DXF — поэтажные планы
About the project
SPLINE.PRO delivered surveying and 3D capture for this project (офисы, банковские филиалы, склады, непрофильные объекты недвижимости). Typical scope: Laser scanning, Measured drawings, Point cloud.
Client outputs included agreed formats (E57, RCP, DWG/DXF — поэтажные планы) and quality checks before handover.
What the client received
- Laser scanning
- Measured drawings
- Point cloud
- E57
- RCP
Work in progress

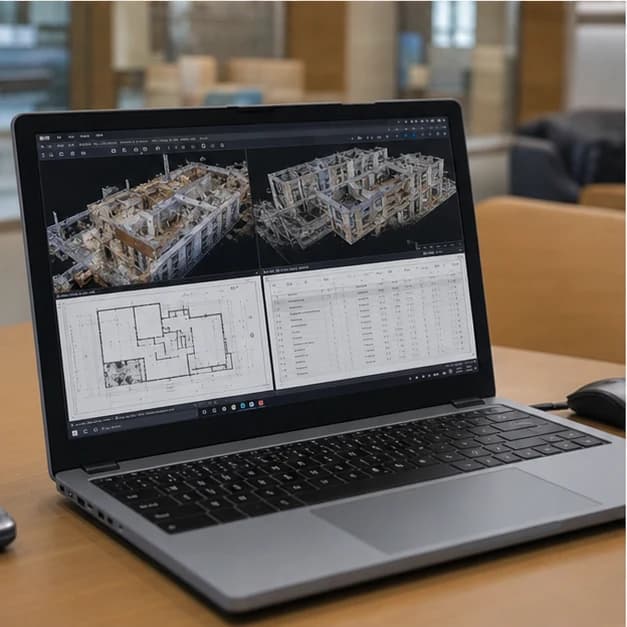

- Area 1Field photo 1.

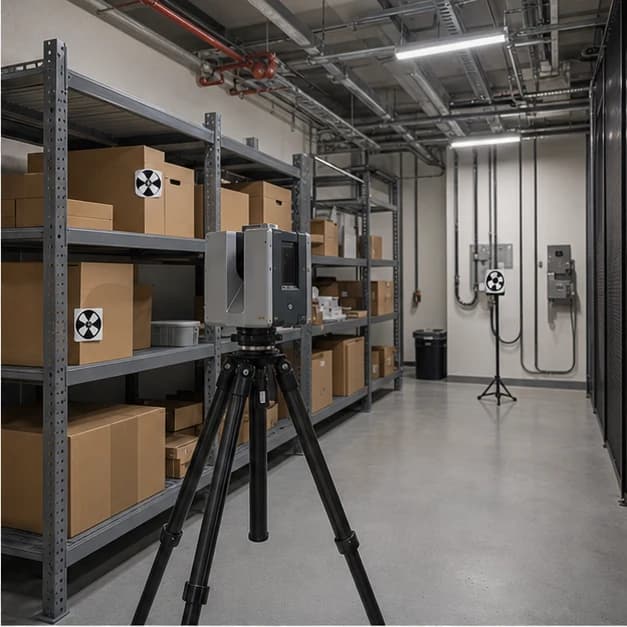

- Area 2Field photo 2.

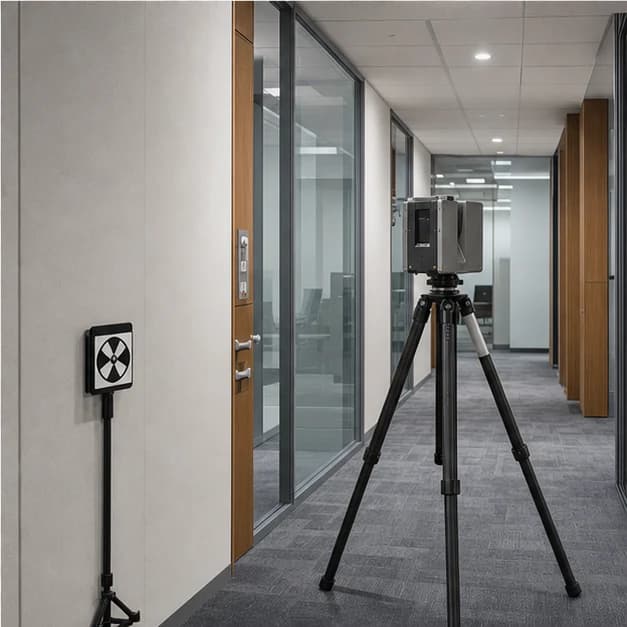

- Area 3Field photo 3.
Work stages
Preparation
Defining scope, access, and the agreed deliverable set.
Field work
Scanner capture with overlap and quality control.
Processing
Registration, cleaning, and export to project formats.
Documentation
Plans, sections, and handover to the client in DWG/PDF, etc.
Results
Point cloud and model
Dense point cloud, mesh, and BIM-friendly deliverables as agreed.
Drawings and plans
Floor plans and sections in the agreed scales and layer structure.
Data for your workflow
Handover support and advice on using data in your design tools.
A similar task? Let’s talk about your site
We’ll outline scope, schedule, and deliverables.
